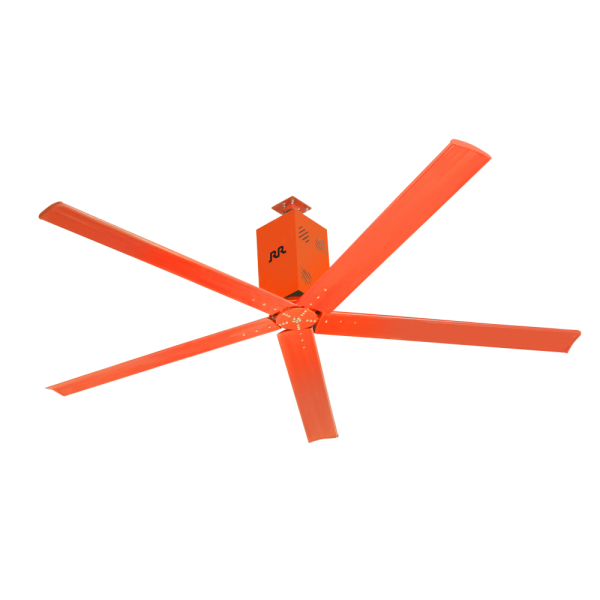

A High Volume Low Speed (HVLS) fan is an air circulating device of large diameter.
It is available in various sizes between 8-24 feet. HVLS fans are predominately ceiling-mounted although they can be mounted on the pole too. These fans move slowly and distribute large amounts of air at a low rotational speed. RREL provides HVLS fans for both domestic and industrial applications.
| MODEL | FAN DIAMETER ( FEET) | AIR DELIVERY (CFM) | FLOOR TO CEILING Height (feet) | MOTOR (kw) | FAN SPEED (RPM) | AREA COVERAGE (sq. ft) |
|---|---|---|---|---|---|---|
| HL08GV | 8 | 1,30,000 | 13 to 15 | 0.75 kW | 110 | 4,000 |
| HL12GV | 12 | 1,75,000 | 15 to 118 | 0.75 kW | 95 | 7,000 |
| HL16GV | 16 | 2,25,000 | 18 to 22 | 1.10 kW | 80 | 10,000 |
| HL20GV | 20 | 3,00,000 | 22 to 27 | 1.5 kW | 65 | 15,000 |
| HL24GV | 24 | 3.75,000 | >27 | 1.5 kW | 55 | 20,000 |
